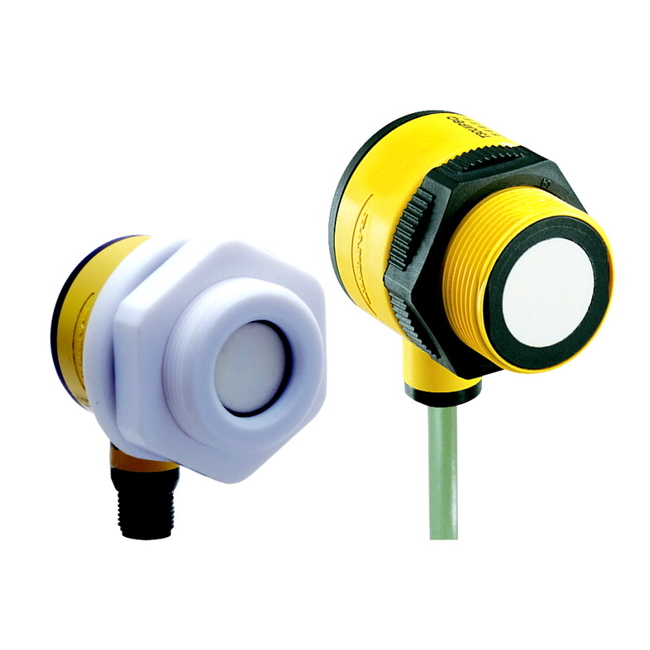

T30UDPA BANNER ⍾ 55544

T30U Series 2 m Range Pump Control Ultrasonic Sensor; Dual-Discrete T30U Series: Proximity Mode Range: 150 mm to 1 m; Input: 12-24V dc Outputs: Two Discrete PNP2 m (6.5 ft) Cable; Max Measurement Range : >500 mm - <=1000 mm; Cable Length (m) : 2; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Time of Flight; Housing Style : Barrel; Device Type : Sensor; Primary Housing Material : PBT; Input/Output : Discrete; Quick Disconnect Type : No QD; Analog Resolution/Discrete Repeatability : +/- 0.25% of measured distance (0.5 min); Max Sensing Distance (mm) : 1000; Minimum Sensing Distance (mm) : 150; Power Supply : 12-24 V dc; Adjustments : Teach Button; Temperature Effect (mm/°C) : 0.2% of sensing distance/°C; Number of Pins : 5; Vibration : MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).; Mechanical Shock : IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave; Output Saturation Voltage PNP Outputs : < 1.0 V at 10 mA ; < 1.5 V at 100 mA; Max Discrete (Switched) Output (mA) : 100; Discrete (Switched) Outputs : 2 PNP; Output Protection : Protected against false pulse on power-up and continuous overload or short-circuit of outputs; NEMA Rating : NEMA 6; Max Operating Temperature (°C) : 70; Min Operating Temperature (°C) : -20; Max Op. Relative Humidity Non-Condensing (%) : 100; Warm-up Time (minutes) : 15; Minimum Response Time (ms) : 48; Barrel Diameter (mm) : 30; Minimum Window Size (mm) : 10; Remote Teach and Laser Control Input Impedence : 55 kΩ; Discrete Output Hysteresis (mm) : 2.5; Ultrasonic Frequency (kHz) : 228; Max Off-state Leakage Current (µA) : 10; Power/Current Consumption (exclusive of load) : 90 mA; Supply Protection Circuitry : Protected against reverse polarity and transient overvoltages; Feature: Remote Teach : Yes; Feature: Clear Object Detection : Yes; Application: Ultrasonic : Yes

Type

T30U

Connection

Flying Leads

Sensing beam

Ultrasonic

Power supply type

DC

Indicator

LED(s)

Degree of protection

IP67
