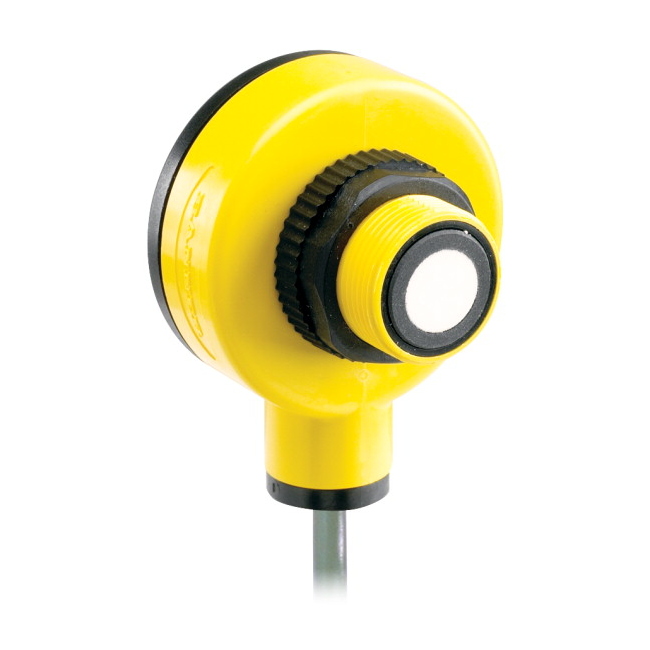

T18VN6URQ BANNER ⍾ 38513

T18U Series Opposed Mode Ultrasonic Sensor; T18U Series: Receiver Range: 300 - 600 mm; Input: 12-30V dc Output: Complementary NPNQuick-Disconnect Connector; Max Measurement Range : >500 mm - <=1000 mm; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Receiver; Housing Style : Rectangular w/M18 Mount; Device Type : Sensor; Primary Housing Material : PBT; Input/Output : Discrete; Quick Disconnect Type : M12 (Euro); Max Sensing Distance (mm) : 600; Minimum Sensing Distance (mm) : 300; Power Supply : 12-30 V dc; Number of Pins : 4; Vibration : MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).; Mechanical Shock : IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave; Mechanical Shock (Additional Comments) : MIL-STD-202G, Meth. 213B, conditions H&I (Shock: 75G with unit operation: 100G for non-operation).; Output Saturation Voltage NPN Outputs : < 1.5 V at 10 mA; < 2.0 V at 150 mA; Output Saturation Voltage PNP Outputs : < 1.5 V at 10 mA; < 2.0 V at 150 mA; Max Discrete (Switched) Output (mA) : 150 mA max. (each output) at 25°C, derated to 100 mA at 70°C (derate â&#x0089;&#x0088; 1 mA per °C); Discrete (Switched) Outputs : NPN Complementary; Output Protection : Protected against overload and short circuit conditions. No false pulse upon receiver power-up; NEMA Rating : NEMA 6P; Max Operating Temperature (°C) : 70; Min Operating Temperature (°C) : -40; Minimum Response Time (ms) : 1; Rep Rate (ms) : Normal Resolution Mode: 8; High Resolution Mode: 5; Barrel Diameter (mm) : 18; Ultrasonic Frequency (kHz) : 230; Max Off-state Leakage Current (µA) : < 1 at 30 V dc; Power/Current Consumption (exclusive of load) : 35 mA; Supply Protection Circuitry : Protected against reverse polarity and transient overvoltages; Feature: Clear Object Detection : Yes; Feature: Quick Disconnect : Yes; Application: Ultrasonic : Yes

Type

T18U

Connection

Integral QD

Sensing beam

Ultrasonic

Typical response time

100 ms

Power supply type

DC

Indicator

LED(s)

Degree of protection

IP67
