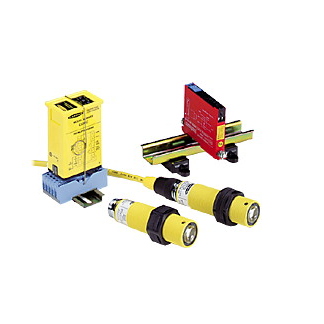

SMI306EQ BANNER ⍾ 35268

SMI30 Series Intrinsically Safe Barrel Sensor; SMI30 Series: Emitter - Frequency ARange: 140 m; Input: 10-30 V dc Output: Not applicable - No outputs Mini 3-pin Integral QD; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter; Housing Style : Barrel; Primary Housing Material : Thermoplastic; Max Sensing Distance (mm) : 140000; Quick Disconnect Type : 7/8 in. (Mini); Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 10; Special Feature: Intrinsically Safe : Yes; Repeatability (µs) : 1000; Number of Pins : 3; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 30; Opposed Mode Emitter/Receiver : Emitter; Feature: Encapsulated : Yes; Feature: Hazardous Area : Yes; Feature: Quick Disconnect : Yes

Type

SMI30

Lens material

Acrylic

Sensing beam

Infrared LED

Connection

Integral QD

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
