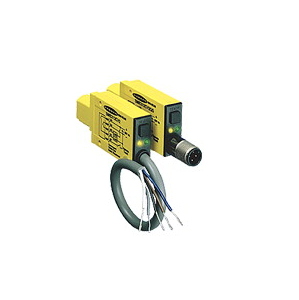

SME312LPC BANNER ⍾ 53710

Mini-Beam Series Industry Standard Sensor; MINI-BEAM EXPERT: Polarized Retro Clear Detection Range: 1 m; Input: 10-30V dc Output: Bipolar: 1 NPN; 1 PNP2 m (6.5 ft) cable; Cable Length (m) : 2; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Polarized; Housing Style : Rectangular w/M18 Mount; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 1000; Outputs : Bipolar (NPN & PNP); Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -20; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 70; Output response time (ms) : 0.5; Special Feature: Remote Teach : Yes; Sensing Beam Wavelength : 650; Repeatability (µs) : 100; Number of Pins : 5; NEMA Rating : NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13; Max Op. Relative Humidity [%] : 90% @ 50°C; Adjustments : Teach Button; Barrel Diameter (mm) : 18; Feature: Clear Object Detection : Yes

Type

MINI-BEAM

Lens material

Acrylic

Sensing beam

Visible Red LED

Connection

Cable

Typical response time

1000 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
