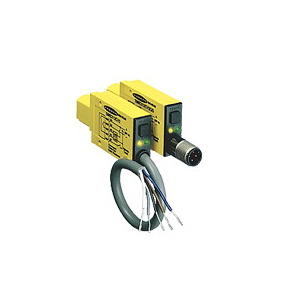

SME312FVMHSQD BANNER ⍾ 56670

MINI-BEAM Fiber Optic Amplifier; MINI-BEAM EXPERT: High Speed Red Glass Fiber Range: depends on fiber used; Input: 10-30V dc Output: Bipolar: 1 NPN; 1 PNPMHS Response =150 microsecond; QD Connector; Housing Style : Rectangular w/M18 Mount; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Color LED - Amplifiers : Infrared; Fiber Type : Glass Only; Quick Disconnect Type : M12 (Euro); Output Type (Specific) : Single Discrete; Repeatability (µs) : 100; Number of Pins : 5; NEMA Rating : NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13; Max Op. Temperature (°C) : 70; Min Op. Temperature (°C) : -20; Max Op. Relative Humidity (%) : 90% @ 50°C; Special Feature: Remote Teach : Yes; Adjustments : Teach Button; Indicator Display Type : Indicator LEDs; Minimum response time (ms) : .15; Feature: Quick Disconnect : Yes; Housing Material : Thermoplastic

Type

MINI-BEAM

Connection

Integral QD

Typical response time

1000 ms

Power supply

10-30 V dc

Power supply type

DC

Degree of protection

IP67
