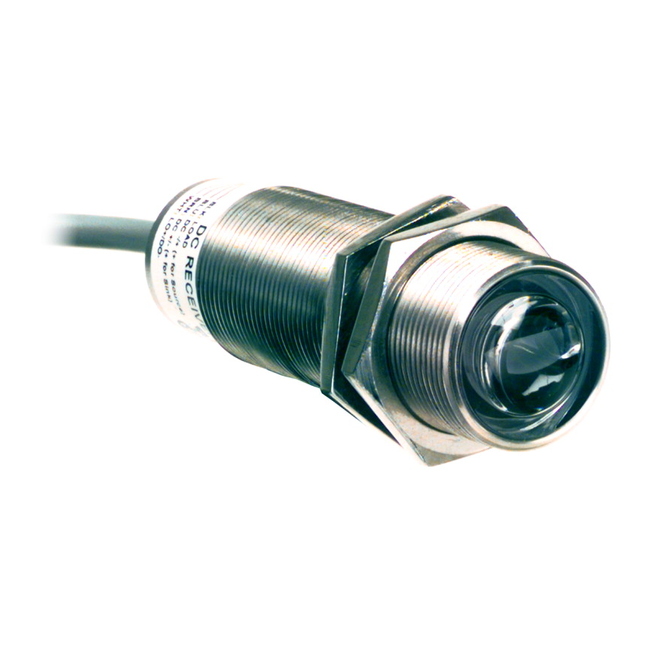

SM30PRLQDC BANNER ⍾ 3033220

SM30 Series 150 m Range Opposed Mode Barrel Sensor; SM30 Series: Receiver - Frequency C PBT Polyester Range: 150 m; Input: 10-30 V dc Output: Bi-Modal: 1 NPN; 1 PNP - LO & DO Mini 4-pin Integral QD; Sensing Mode (General) : Opposed; Housing Style : Barrel; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 150000; Outputs : Bipolar (NPN & PNP); Quick Disconnect Type : 7/8 in. (Mini); Operation : Light/Dark Operate; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Repeatability (µs) : 2300; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Feature: Quick Disconnect : Yes

Type

SM30

Alternative product id

33220

Lens material

Acrylic

Sensing beam

Infrared LED

Power supply type

DC

Indicator

LEDs

Degree of protection

IP67
