SLM80B6 W/30 BANNER ⍾ 3075019

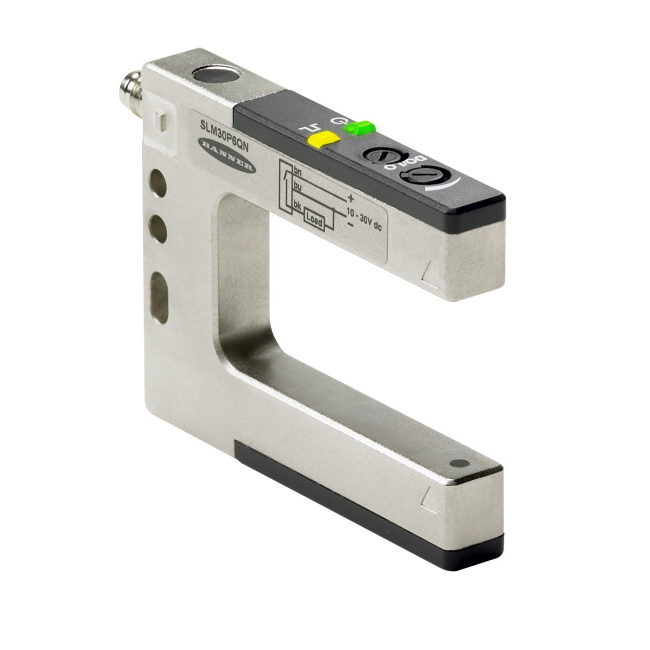

SLM Series Rugged Metal Slot Sensor; SLM Series: Rugged Nickel Plated Metal Fixed-Distance Slot Sensor Slot Width:80 mm; Input:10-30 V dc Output: Bipolar: 1 NPN; 1 PNP 9 m (30 ft) Cable; Sensing Mode (Detailed) : Emitter/Receiver Pair; Primary Housing Material : Zinc Die-Cast with Nickel-Plating; Slot Depth/Array Length (mm) : 60.8; Minimum Object Detection (mm) : .75; Quick Disconnect Type : No QD; Outputs : Bipolar (NPN & PNP); Slot Overall Depth (mm) : 112; Number of Pins : 4; Output response time (ms) : 0.5; Repeatability (µs) : 95; Adjustments : Potentiometer; Operation : Light/Dark Operate; Max Op. Temperature (°C) : 60; Min Op. Temperature (°C) : -20; Max Op. Relative Humidity (%) : 95% @ 55°C; NEMA Rating : NEMA 6; Minimum Object Detection [mm] : 0.75

Type

SLM Series Rugged Metal Slot Sensor

Alternative product id

75019

Lens material

Acrylic

Typical response time

100 ms

Indicator

LEDs

Degree of protection

IP67
