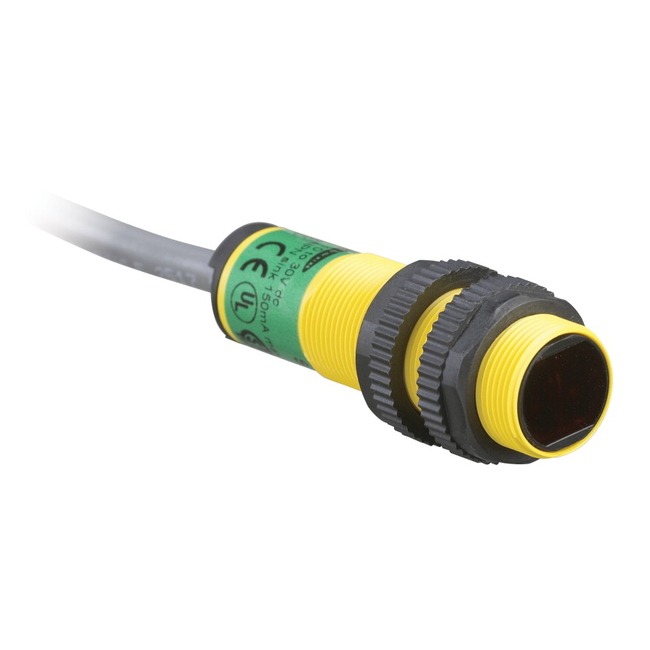

S18RW3FF100 BANNER ⍾ 30330

S18 Series Epoxy Encapsulated Barrel-Mount Sensor; EZ-BEAM S18 Series: Fixed Field Range: 100 mm; Input: 20-250 V ac Output: SPST Solid-state Dark Operate 2 m (6.5 ft) Cable; Cable Length (m) : 2; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Fixed); Housing Style : Barrel; Primary Housing Material : Thermoplastic; Input/Output : Solid-State AC Switch; Max Sensing Distance (mm) : 100; Outputs : Solid-State AC Switch; Quick Disconnect Type : No QD; Operation : Dark Operate; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 16; Repeatability (µs) : 4000; Number of Pins : 3; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 18; Feature: Washdown Rated : Yes; Feature: Ecolab Certified : Yes; Feature: Encapsulated : Yes

Type

S18

Lens material

Acrylic

Sensing beam

Infrared LED

Connection

Cable

Typical response time

100 ms

Power supply type

AC

Power supply

20-250 V ac

Indicator

LEDs

Degree of protection

IP67, IP69
