S186ELD W/30 BANNER ⍾ 35006

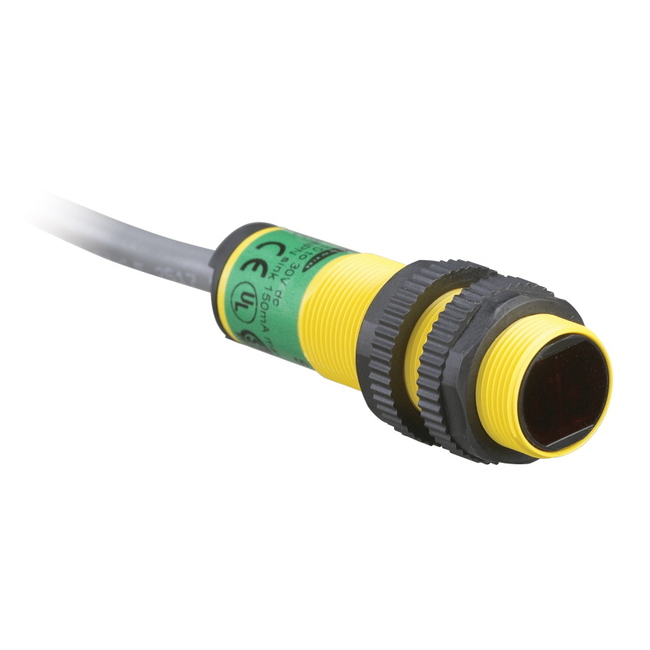

S186ELD Plastic Barrel Laser Emitter; S186ELD Laser: Emitter Range: depends on receiver; Input: 10-30 V dc Not appli Cable - No outputs 9 m (30 ft) Cable; Cable Length (m) : 9; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Laser Emitter; Housing Style : Barrel; Primary Housing Material : Thermoplastic; Small Visible Spot : Laser; Laser Classification : Class 1; Max Sensing Distance (mm) : 15000; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Repeatability (µs) : 375; Number of Pins : 2; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 18; Opposed Mode Emitter/Receiver : Emitter; Feature: Washdown Rated : Yes; Feature: Ecolab Certified : Yes

Lens material

Polycarbonate

Sensing beam

Visible Red Laser

Connection

Cable

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67, IP69
