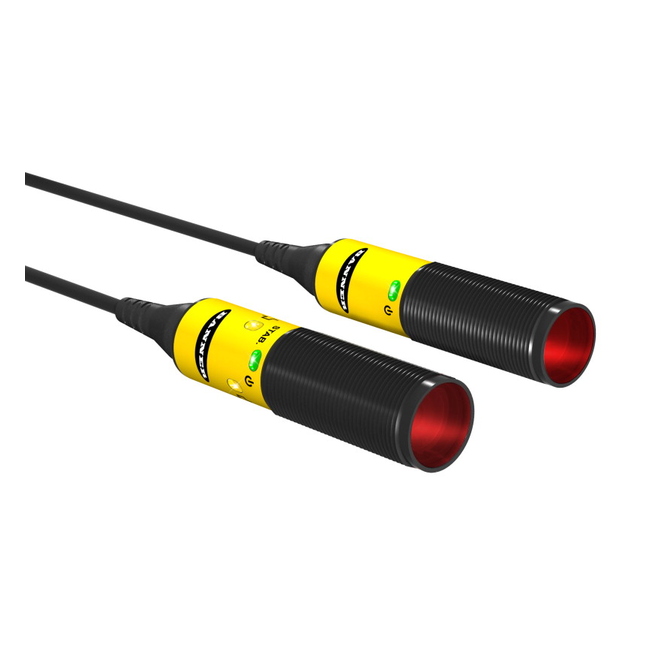

S18-2VPLPC-2M BANNER ⍾ 86561

S18-2 Series Cost Effective Plastic 18 mm Barrel; S18-2 Series: Polarized Retroreflective with pot Range: variable to 6 m; Input: 10-30 V dc Outputs: complementary PNPConnection: 4-conductor 2 m PVC Cable; Cable Length (m) : 2; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Polarized; Housing Style : Barrel; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 6000; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -40; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 70; Output response time (ms) : 1.5; Sensing Beam Wavelength : 624; Repeatability (µs) : 100; Number of Pins : 4; Max Op. Relative Humidity [%] : 95% @ 50°C; Adjustments : Potentiometer; Barrel Diameter (mm) : 18; Feature: Ecolab Certified : Yes

Type

S18-2

Lens material

Acrylic

Sensing beam

Visible Red LED

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
