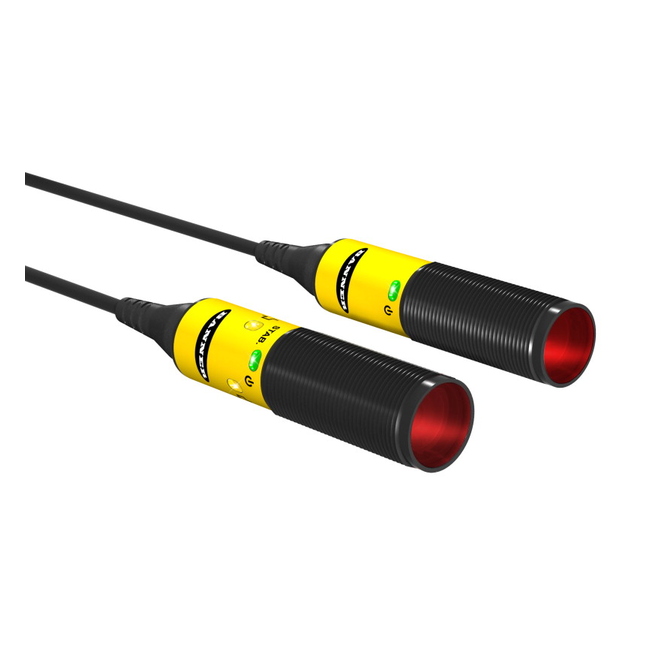

BANNER S18-2VNDL-2M

S18-2VNDL-2M BANNER ⍾ 42160

S18-2 Series Cost Effective Plastic 18 mm Barrel; S18-2 Series: Diffuse Reflective Range: 750 mm; Input: 10-30 V dc Outputs: complementary NPNConnection: 4-conductor 2 m PVC Cable; Cable Length (m) : 2; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Diffuse; Housing Style : Barrel; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 750; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -40; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 70; Output response time (ms) : 1.5; Sensing Beam Wavelength : 624; Repeatability (µs) : 100; Number of Pins : 4; Max Op. Relative Humidity [%] : 95% @ 50°C; Adjustments : Potentiometer; Barrel Diameter (mm) : 18; Feature: Ecolab Certified : Yes

Lens material
Acrylic
Sensing beam
Visible Red LED
Typical response time
100 ms
Power supply type
DC
Power supply
10-30 V dc
Indicator
LEDs
Degree of protection
IP67
