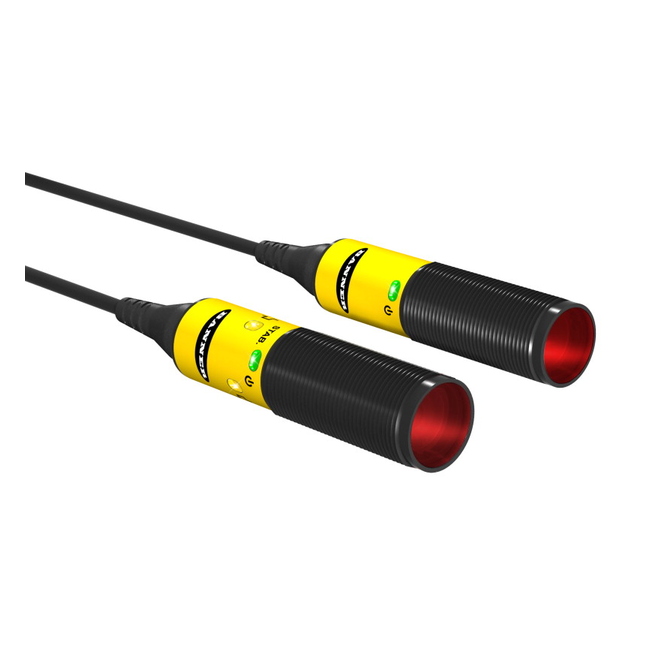

BANNER S18-2NAEL-Q5

S18-2NAEL-Q5 BANNER ⍾ 42193

S18-2 Series Cost Effective Plastic 18 mm Barrel; S18-2 Series: Emitter; Long Range Range: 25 m; Input: 10-30 V dc Outputs: none Connection: Euro M12 4-pin 150 mm PVC Pigtail; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter; Housing Style : Barrel; Primary Housing Material : Thermoplastic; Max Sensing Distance (mm) : 25000; Quick Disconnect Type : M12 (Euro); Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 1.5; Sensing Beam Wavelength : 645; Repeatability (µs) : 170; Number of Pins : 4; Max Op. Relative Humidity [%] : 95% @ 50°C; Barrel Diameter (mm) : 18; Opposed Mode Emitter/Receiver : Emitter; Feature: Ecolab Certified : Yes; Feature: Quick Disconnect : Yes

Lens material
Acrylic
Sensing beam
Visible Red LED
Typical response time
100 ms
Power supply type
DC
Power supply
10-30 V dc
Indicator
LEDs
Degree of protection
IP67
