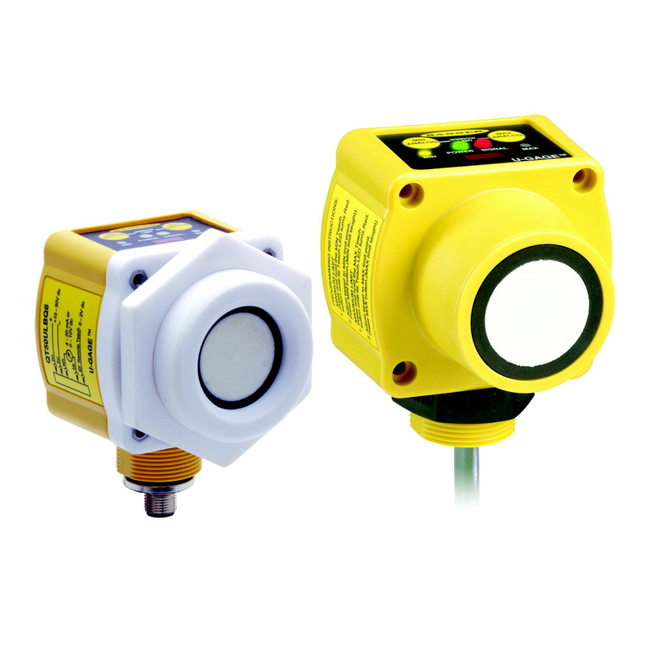

QT50UDBQ BANNER ⍾ 02723

QT50U Series 8 m Range Chemical Resistant Ultrasonic Sensor; QT50U Dual-Discrete Series: Proximity Mode Range: 200mm to 8m; Input: 10-30V dc Outputs: 2 Discrete NPN or PNP 5-Pin MINI-Style Quick-Disconnect; Max Measurement Range : >1 m - <=20 m; Sensing Mode (Detailed) : Time of Flight; Housing Style : Rectangular; Device Type : Sensor; Primary Housing Material : PBT; Quick Disconnect Type : M12 (Euro); Max Sensing Distance (mm) : 8000; Power Supply : 10-30 V dc; Adjustments : Push Button (s); Temperature Effect (mm/°C) : Uncompensated: 0.2% of distance/°C; Compensated: 0.02% of distance/°C; Vibration : MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).; Mechanical Shock : IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave; Output Saturation Voltage NPN Outputs : < 0.2 V at 10 mA; < 0.65 V at 150 mA; Output Saturation Voltage PNP Outputs : < 1.2 V at 10 mA; < 1.65 V at 100 mA; Max Discrete (Switched) Output (mA) : 150; Discrete (Switched) Outputs : 2 NPN/PNP Configurable; Output Protection : Protected against short circuit conditions; NEMA Rating : NEMA 6P; Storage Temperature (°C) : -40 to 90; Max Operating Temperature (°C) : 70; Min Operating Temperature (°C) : -20; Max Op. Relative Humidity Non-Condensing (%) : 100; Warm-up Time (minutes) : 15; Minimum Response Time (ms) : 100; Rep Rate (ms) : 96; Ultrasonic Frequency (kHz) : 75; Power/Current Consumption (exclusive of load) : 100 mA max @ 10 V dc; 40 mA max @ 30 V dc; Supply Protection Circuitry : Protected against reverse polarity and transient overvoltages; Feature: Remote Teach : Yes; Feature: Clear Object Detection : Yes; Feature: Pump-in/ Pump-out : Yes; Feature: Quick Disconnect : Yes; Application: Ultrasonic : Yes

Type

QT50U

Connection

Integral QD

Sensing beam

Ultrasonic

Typical response time

1500 ms

Power supply type

DC

Indicator

LED(s)

Degree of protection

IP67
