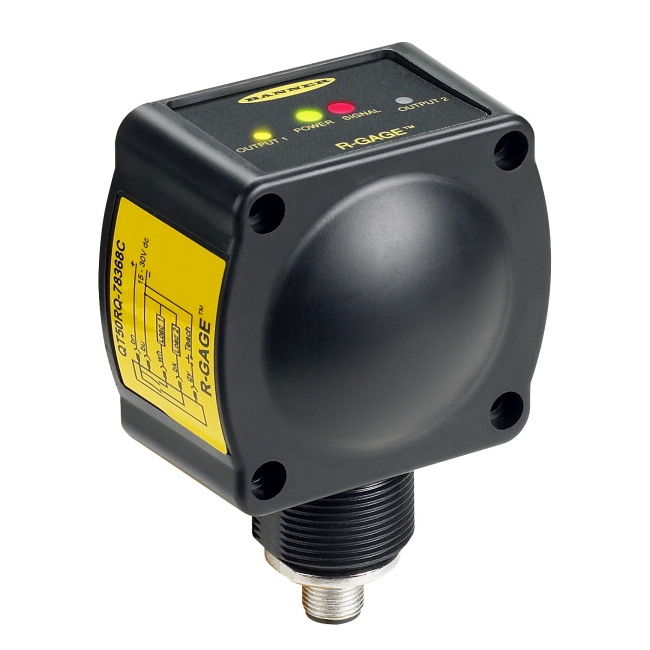

QT50R-EU-RHQ BANNER ⍾ 54276

QT50R Series Collision Avoidance Radar Sensor; R-Gage Series Radar Sensor Retroreflective; Outputs: Bipolar: 1 NPN; 1 PNPSupply Voltage:12-30 V dc Range: 0 - 12 m; Euro 5-pin Integral Connector; Max Measurement Range : >5 m - <=20 m; Operating Frequency : 24 GHz; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Time of Flight; Housing Style : Rectangular; Device Type : Sensor; Primary Housing Material : ABS/Polycarbonate; Input/Output : Discrete; Radar Beam Pattern (H x V °) : 90 x 76; Quick Disconnect Type : M12 (Euro); Max Sensing Distance (mm) : 12000; Power Supply : 12-30 V dc; Adjustments : Dip Switch; Number of Pins : 5; Max Discrete (Switched) Output (mA) : 150; Discrete (Switched) Outputs : Bipolar (NPN & PNP); Output Protection : Protected against short circuit; Max Operating Temperature (°C) : 65; Min Operating Temperature (°C) : -40; Minimum Response Time (ms) : 30; Power/Current Consumption (exclusive of load) : < 100 mA; Supply Protection Circuitry : Protected against reverse polarity and transient overvoltages; Feature: Remote Teach : Yes; Feature: Quick Disconnect : Yes; Cert: Australia/New Zealand : Yes; Cert: China : Yes; Cert: European : Yes; Cert: Japan : Yes

Type

QT50R

Connection

Integral QD

Sensing beam

Radar

Typical response time

2000 ms

Power supply type

DC

Indicator

LED(s)

Degree of protection

IP67
