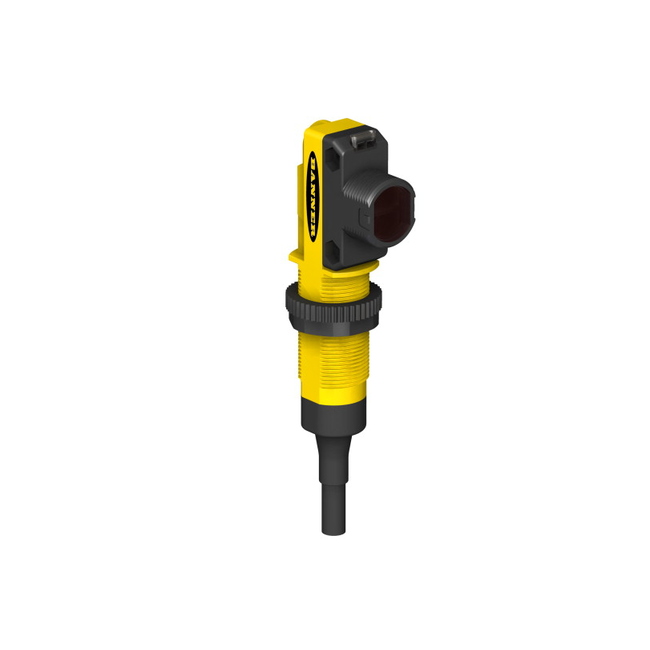

QS30VR3FF400 W/30 BANNER ⍾ 73200

QS30 Series High-Performance Long-Range Sensor; WORLD-BEAM QS30 Series: Universal Voltage Range: 400 mm; Input: 12-250 V dc or 24-250 V ac Output: SPDT e/m Relay 9 m (30 ft) Cable; Cable Length (m) : 9; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Fixed); Housing Style : Rectangular w/M30 Mount; Primary Housing Material : Thermoplastic; Input/Output : E/M Relay; Max Sensing Distance (mm) : 400; Outputs : SPDT e/m Relay; Quick Disconnect Type : No QD; Operation : Light/Dark Operate; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 70; Output response time (ms) : 15; Sensing Beam Wavelength : 680; Number of Pins : 5; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 50°C; Barrel Diameter (mm) : 30

Type

QS30

Lens material

Acrylic

Sensing beam

Visible Red LED

Connection

Cable

Typical response time

100 ms

Power supply type

AC/DC Universal

Power supply

12-250 V dc or 24-250 V ac

Indicator

LEDs

Degree of protection

IP67
