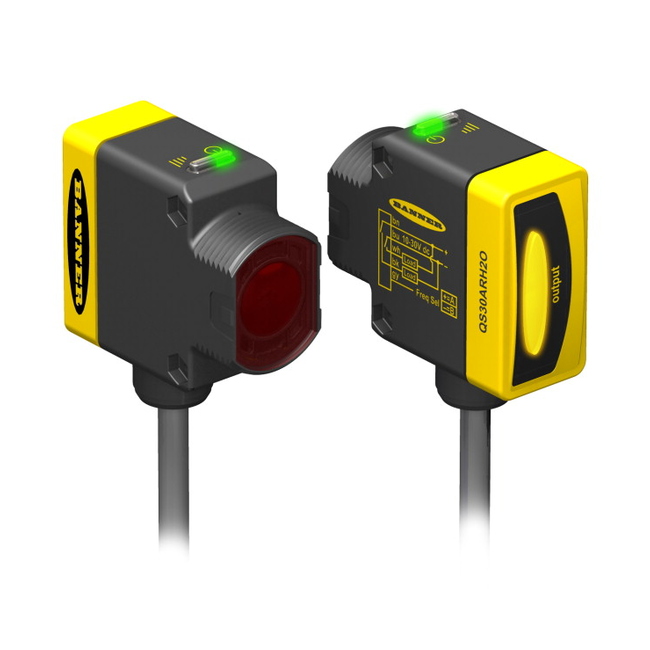

QS30RRXSH2OQ5 BANNER ⍾ 83306

QS30 Series High-Performance Long-Range Sensor; WORLD-BEAM QS30 Series: H2O SHP Receiver Range: 8 m; Input: 10-30 V dc Output: DO; Bipolar: 1 NPN; 1 PNPEuro 5-pin 6 in Pigtail QD; Cable Length (m) : 0.15; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Receiver; Housing Style : Rectangular w/M30 Mount; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 8000; Outputs : Bipolar (NPN & PNP); Quick Disconnect Type : M12 (Euro); Min Op. Temp. (°C) : -20; Operation : Dark Operate; Max Op. Temp. (°C) : 60; Output response time (ms) : 10; Special Feature: Water Detection : Yes; Repeatability (µs) : 5000; Number of Pins : 5; NEMA Rating : NEMA PW12; Max Op. Relative Humidity [%] : 95% @ 50°C; Barrel Diameter (mm) : 30; Opposed Mode Emitter/Receiver : Receiver; Feature: Encapsulated : Yes; Feature: Quick Disconnect : Yes

Type

QS30

Lens material

Acrylic

Sensing beam

Long Infrared (Water Detection)

Connection

Pigtail QD

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

Bargraph

Degree of protection

IP67
