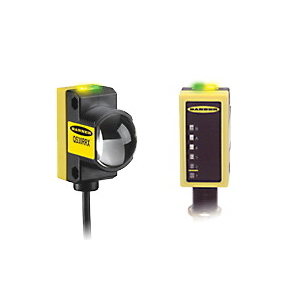

QS30RRXQ BANNER ⍾ 71741

QS30 Series High-Performance Long-Range Sensor; WORLD-BEAM QS30 Series: High-Powered Receiver Range: 213 M; Input: 10-30V dc Output: DO (Dark Operate) Bipolar: 1 NPN; 1 PNPEuro-Style Quick-Disconnect Connector; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Receiver; Housing Style : Rectangular w/M30 Mount; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 213000; Outputs : Bipolar (NPN & PNP); Quick Disconnect Type : M12 (Euro); Min Op. Temp. (°C) : -20; Operation : Dark Operate; Max Op. Temp. (°C) : 70; Output response time (ms) : 5; Sensing Beam Wavelength : 875; Repeatability (µs) : 5000; Number of Pins : 5; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 50°C; Barrel Diameter (mm) : 30; Opposed Mode Emitter/Receiver : Receiver; Feature: Washdown Rated : Yes; Feature: Encapsulated : Yes; Feature: Quick Disconnect : Yes

Type

QS30

Connection

Integral QD

Lens material

Zeonex

Sensing beam

Infrared LED

Typical response time

100 ms

Power supply

10-30 V dc

Indicator

Bargraph

Degree of protection

IP69
