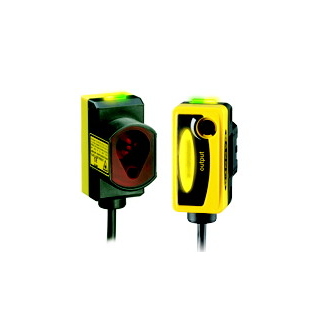

QS30LV BANNER ⍾ 72605

QS30 Series High-Performance Long-Range Sensor; WORLD-BEAM QS30 Series: Retroreflective Range: 10 m; Input: 10-30V dc Output: Bipolar: 1 NPN; 1 PNP2 m (6.5 ft) Cable; Cable Length (m) : 2; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Non-Polarized; Housing Style : Rectangular w/M30 Mount; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 12000; Outputs : Bipolar (NPN & PNP); Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -20; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 70; Output response time (ms) : 2; Sensing Beam Wavelength : 630; Repeatability (µs) : 500; Number of Pins : 5; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 55°C; Adjustments : Potentiometer; Barrel Diameter (mm) : 30

Type

QS30

Connection

Cable

Typical response time

100 ms

Degree of protection

IP67
