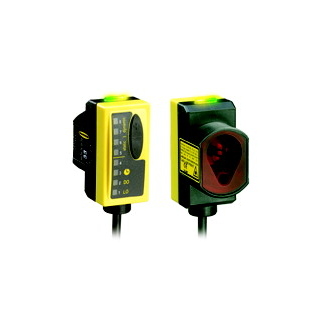

QS30LLPQPMA BANNER ⍾ 72102

QS30 Series High-Performance Long-Range Sensor; WORLD-BEAM QS30: Long Range Laser Polarized Retro Range: 0.2-18 m; Input: 10-30V dc Output: Bipolar: 1 NPN; 1 PNP6 in (150 mm) PUR pigtail Euro-style QD; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Polarized; Housing Style : Rectangular w/M30 Mount; Primary Housing Material : Thermoplastic; Small Visible Spot : Laser; Laser Classification : Class 1; Input/Output : Discrete; Max Sensing Distance (mm) : 18000; Outputs : Bipolar (NPN & PNP); Quick Disconnect Type : M12 (Euro); Operation : Light/Dark Operate; Min Op. Temp. (°C) : -10; Max Op. Temp. (°C) : 50; Output response time (ms) : 0.5; Special Feature: Remote Teach : Yes; Sensing Beam Wavelength : 650; Repeatability (µs) : 70; Number of Pins : 5; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 50°C; Adjustments : Teach Button; Barrel Diameter (mm) : 30; Feature: Quick Disconnect : Yes

Type

QS30

Lens material

Acrylic

Sensing beam

Visible Red Laser

Connection

Pigtail PUR QD

Typical response time

1000 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

Bargraph

Degree of protection

IP67
