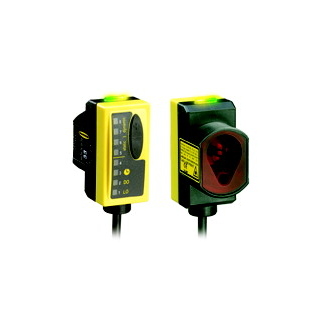

QS30LDLQ BANNER ⍾ 02786

QS30 Series High-Performance Long-Range Sensor; WORLD-BEAM QS30 Series: Laser Diffuse (Class 2)Range: 800 mm; Input: 10-30 V dc Output: Bipolar: 1 NPN; 1 PNPEuro-Style Euro M12 5-pin Integral QD; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Diffuse; Housing Style : Rectangular w/M30 Mount; Primary Housing Material : Thermoplastic; Small Visible Spot : Laser; Laser Classification : Class 2; Input/Output : Discrete; Max Sensing Distance (mm) : 800; Outputs : Bipolar (NPN & PNP); Quick Disconnect Type : M12 (Euro); Min Op. Temp. (°C) : -10; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 50; Output response time (ms) : 0.5; Special Feature: Remote Teach : Yes; Sensing Beam Wavelength : 658; Repeatability (µs) : 70; Number of Pins : 5; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 50°C; Adjustments : Teach Button; Barrel Diameter (mm) : 30; Feature: Timing (Hold/Delay) : Yes; Feature: Quick Disconnect : Yes

Type

QS30

Lens material

Acrylic

Sensing beam

Visible Red Laser

Connection

Integral QD

Typical response time

1000 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
