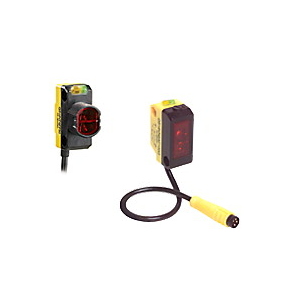

QS30FF600 BANNER ⍾ 73091

QS30 Series High-Performance Long-Range Sensor; WORLD-BEAM QS30 Series: Fixed-Field Range: 600 mm; Input: 10-30V dc Output: Bipolar: 1 NPN; 1 PNP2 m (6.5 ft) Cable; Cable Length (m) : 2; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Fixed); Housing Style : Rectangular w/M30 Mount; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 600; Outputs : Bipolar (NPN & PNP); Quick Disconnect Type : No QD; Operation : Light/Dark Operate; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 70; Output response time (ms) : 2; Sensing Beam Wavelength : 680; Repeatability (µs) : 500; Number of Pins : 5; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 50°C; Barrel Diameter (mm) : 30

Type

QS30

Lens material

Acrylic

Sensing beam

Visible Red LED

Connection

Cable

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
