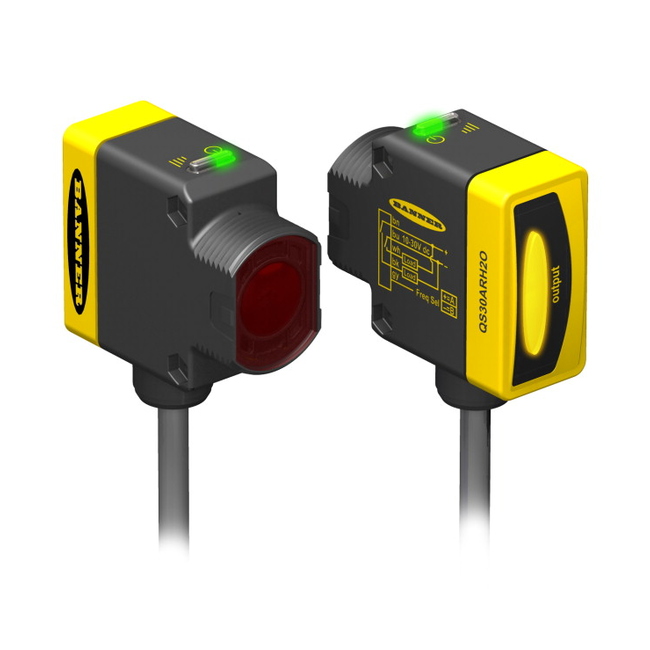

QS30EXSH2O W/30 BANNER ⍾ 83299

QS30 Series High-Performance Long-Range Sensor; WORLD-BEAM QS30 Series: H2O SHP Emitter Range: 8 m; Input: 10-30 V dc Output: Not applicable - No outputs 9 m (30 ft) Cable; Cable Length (m) : 9; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter; Housing Style : Rectangular w/M30 Mount; Primary Housing Material : Thermoplastic; Max Sensing Distance (mm) : 8000; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 60; Output response time (ms) : 10; Special Feature: Water Detection : Yes; Repeatability (µs) : 5000; Number of Pins : 4; NEMA Rating : NEMA PW12; Max Op. Relative Humidity [%] : 95% @ 50°C; Barrel Diameter (mm) : 30; Opposed Mode Emitter/Receiver : Emitter; Feature: Encapsulated : Yes

Type

QS30

Connection

Cable

Typical response time

100 ms

Degree of protection

IP67
