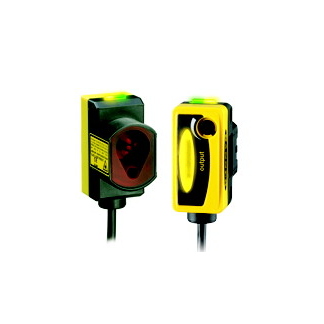

QS30EQ BANNER ⍾ 73082

QS30 Series High-Performance Long-Range Sensor; WORLD-BEAM QS30 Series: Emitter Range: 60 m; Input: 10-30V dc Output: Not applicable - No outputs 5-Pin Euro-Style Quick Disconnect Connector; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter; Housing Style : Rectangular w/M30 Mount; Primary Housing Material : Thermoplastic; Max Sensing Distance (mm) : 60000; Quick Disconnect Type : M12 (Euro); Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 70; Output response time (ms) : 5; Number of Pins : 5; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 50°C; Barrel Diameter (mm) : 30; Opposed Mode Emitter/Receiver : Emitter; Feature: Quick Disconnect : Yes

Type

QS30

Lens material

Acrylic

Sensing beam

Infrared LED

Connection

Integral QD

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
