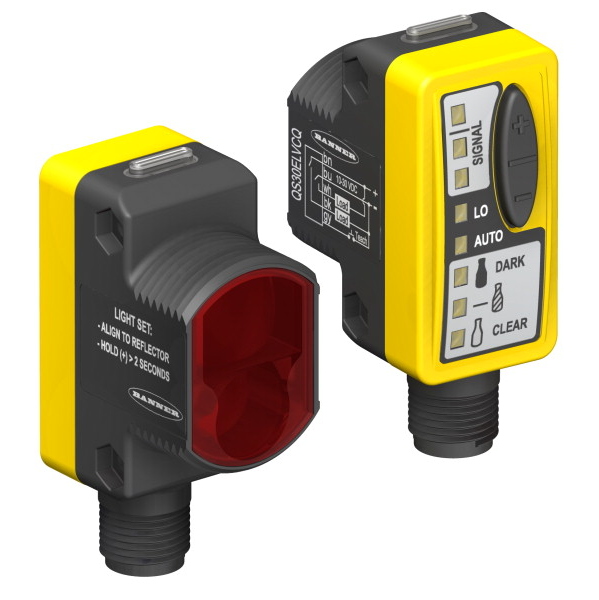

QS30ELVCQ5 BANNER ⍾ 10135

QS30 Series High-Performance Long-Range Sensor; WORLD-BEAM QS30 Series Clear Object Sensor Range: 100 mm-2 m; Input: 10-30V dc Rating: IP67; Output: Bipolar (NPN & PNP)150 mm (6 in) pigtail w/ 5-pin Euro Style connector; Cable Length (m) : 0.15; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Non-Polarized; Housing Style : Rectangular w/M30 Mount; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 2000; Outputs : Bipolar (NPN & PNP); Quick Disconnect Type : M12 (Euro); Operation : Light/Dark Operate; Min Op. Temp. (°C) : -10; Max Op. Temp. (°C) : 55; Output response time (ms) : 0.5; Special Feature: Remote Teach : Yes; Sensing Beam Wavelength : 660; Repeatability (µs) : 150; Number of Pins : 5; NEMA Rating : NEMA PW12; Max Op. Relative Humidity [%] : 95% @ 55°C; Adjustments : Teach Button; Barrel Diameter (mm) : 30; Feature: Clear Object Detection : Yes; Feature: Quick Disconnect : Yes

Type

QS30

Lens material

Acrylic

Sensing beam

Visible Red LED

Connection

Pigtail QD

Typical response time

250 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

Bargraph

Degree of protection

IP67
