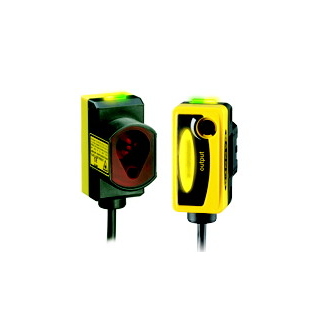

QS30EDVQ BANNER ⍾ 76092

QS30 Series High-Performance Long-Range Sensor; WORLD-BEAM QS30 Expert Diffuse-Mode Visible Red Beam Range: High-Speed Mode: 1 100 mm; Normal: 1400 mm Input: 10-30V dc; Output: Bipolar NPN/PNPEuro-Style Quick Disconnect Connector; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Diffuse; Housing Style : Rectangular w/M30 Mount; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 1400; Outputs : Bipolar (NPN & PNP); Quick Disconnect Type : M12 (Euro); Min Op. Temp. (°C) : -10; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 55; Output response time (ms) : 0.3-1.8; Special Feature: Remote Teach : Yes; Sensing Beam Wavelength : 660; Repeatability (µs) : 100 to 150; Number of Pins : 5; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 55°C; Adjustments : Teach Button; Barrel Diameter (mm) : 30; Feature: Timing (Hold/Delay) : Yes; Feature: Quick Disconnect : Yes

Type

QS30

Lens material

Acrylic

Sensing beam

Visible Red LED

Connection

Integral QD

Typical response time

250 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

Bargraph

Degree of protection

IP67
