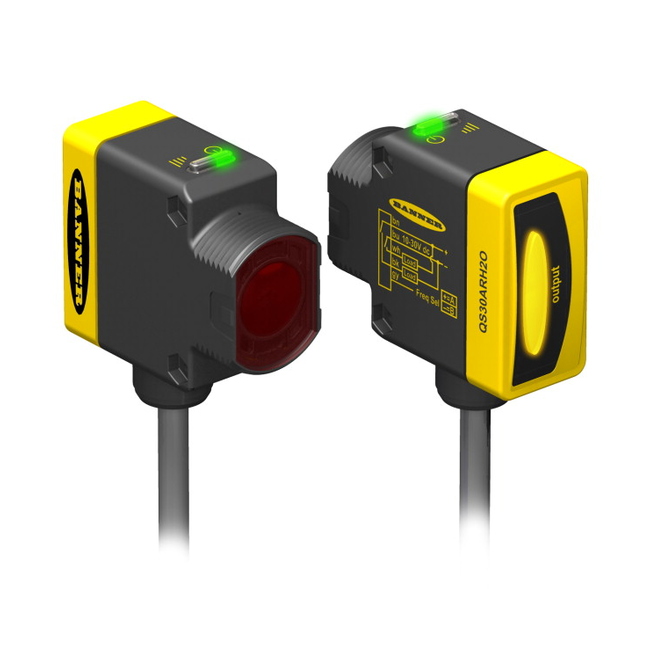

QS30ARXH2O W/30 BANNER ⍾ 3079174

QS30 Series High-Performance Long-Range Sensor; WORLD-BEAM QS30 Series: H2O HP Receiver Range: 4 m; Input: 10-30 V dc Output: LO; Bipolar: 1 NPN; 1 PNP 9 m (30 ft) Cable; Sensing Mode (General) : Opposed; Housing Style : Rectangular w/M30 Mount; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 4000; Outputs : Bipolar (NPN & PNP); Quick Disconnect Type : No QD; Operation : Light Operate; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 60; Special Feature: Water Detection : Yes; Repeatability (µs) : 500; Number of Pins : 5; NEMA Rating : NEMA PW12; Max Op. Relative Humidity [%] : 95% @ 50°C; Feature: Encapsulated : Yes

Type

QS30

Alternative product id

79174

Lens material

Acrylic

Sensing beam

Long Infrared (Water Detection)

Typical response time

100 ms

Power supply type

DC

Indicator

Bargraph

Degree of protection

IP67
