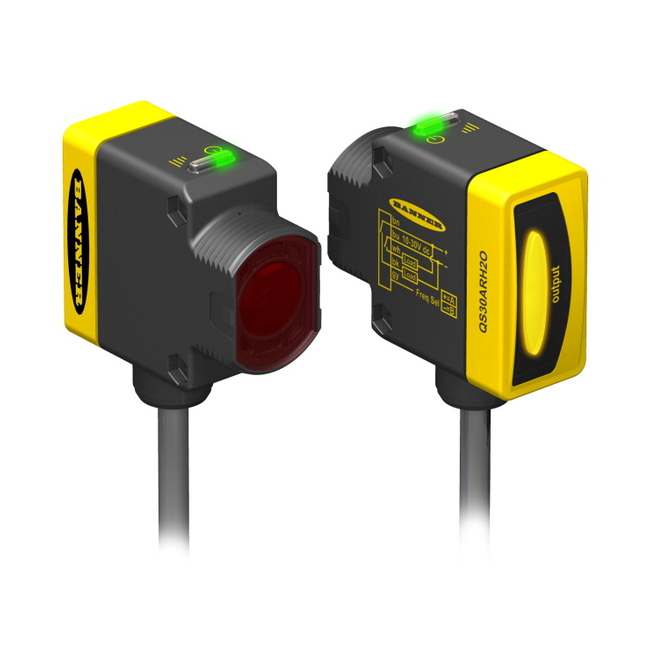

QS30ARH2O BANNER ⍾ 79167

QS30 Series High-Performance Long-Range Sensor; WORLD-BEAM QS30 Series: H2O Receiver Range: 2 m; Input: 10-30 V dc Output: LO; Bipolar: 1 NPN; 1 PNP2 m (6.5 ft) Cable; Cable Length (m) : 2; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Receiver; Housing Style : Rectangular w/M30 Mount; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 2000; Outputs : Bipolar (NPN & PNP); Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -20; Operation : Light Operate; Max Op. Temp. (°C) : 60; Output response time (ms) : 1; Special Feature: Water Detection : Yes; Repeatability (µs) : 500; Number of Pins : 5; NEMA Rating : NEMA PW12; Max Op. Relative Humidity [%] : 95% @ 50°C; Barrel Diameter (mm) : 30; Opposed Mode Emitter/Receiver : Receiver

Type

QS30

Lens material

Acrylic

Sensing beam

Long Infrared (Water Detection)

Connection

Cable

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
