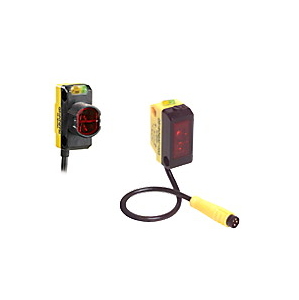

QS30AF BANNER ⍾ 70289

QS30 Series High-Performance Long-Range Sensor; WORLD-BEAM QS30 Series: Adjustable-Field Range: 50 to 300mm; Input: 10-30V dc Output: Bipolar: 1 NPN; 1 PNP2 m (6.5 ft) Cable; Cable Length (m) : 2; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Adjustable); Housing Style : Rectangular w/M30 Mount; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 300; Outputs : Bipolar (NPN & PNP); Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -10; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 55; Output response time (ms) : 1; Special Feature: Remote Teach : Yes; Sensing Beam Wavelength : 660; Repeatability (µs) : 170; Number of Pins : 5; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 90% @ 55°C; Adjustments : Teach Button; Barrel Diameter (mm) : 30; Feature: Timing (Hold/Delay) : Yes

Type

QS30

Lens material

Acrylic

Sensing beam

Visible Red LED

Connection

Cable

Typical response time

250 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

Bargraph

Degree of protection

IP67
