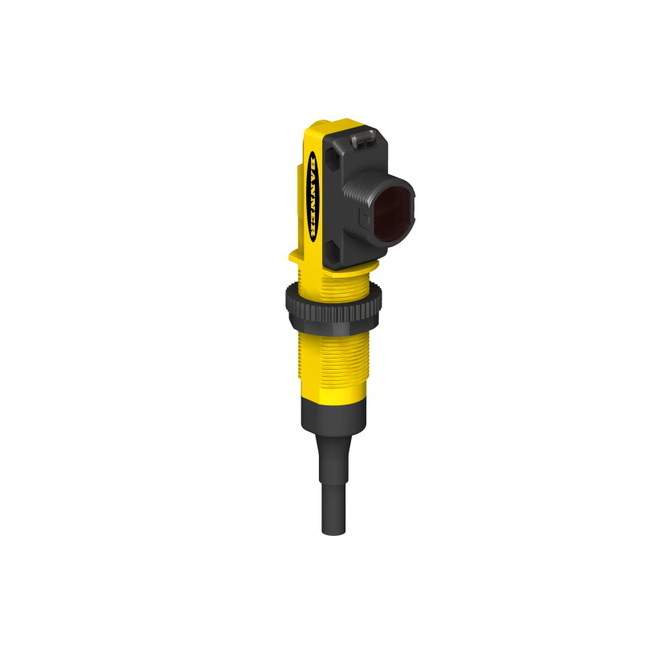

QS18WEQ2 BANNER ⍾ 79586

QS18 Series All Purpose Photoelectric Sensor; WORLD-BEAM QS18 Universal Voltage Emitter Range: 20 m; Input: Output: Not Applicable 150mm Pigtail Micro Pigtail QD Connector; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter; Housing Style : Rectangular w/M18 Mount; Primary Housing Material : ABS; Max Sensing Distance (mm) : 20000; Quick Disconnect Type : 1/2 in. (Micro); Min Op. Temp. (°C) : -25; Max Op. Temp. (°C) : 70 if < 140V, 55 if > 140V; Output response time (ms) : 16.6; Repeatability (µs) : 1500; Number of Pins : 4; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 55°C; Barrel Diameter (mm) : 18; Opposed Mode Emitter/Receiver : Emitter; Feature: Quick Disconnect : Yes

Type

QS18

Lens material

PMMA

Sensing beam

Infrared LED

Connection

Pigtail QD

Typical response time

100ms dc, 300ms ac ms

Power supply type

AC/DC Universal

Power supply

20-270 V ac/dc

Indicator

LEDs

Degree of protection

IP67
