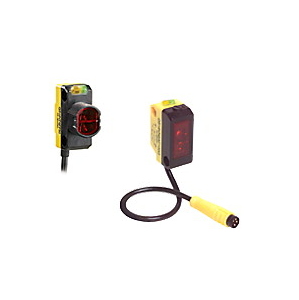

QS18VP6LAF250 W/30 BANNER ⍾ 75740

QS18 Series All Purpose Photoelectric Sensor; WORLD-BEAM QS18 Series: Adjustable Field Range: 250 mm; Input: 10-30 V dc Output: Complementary Solid State PNP9 m (30 ft) Cable; Cable Length (m) : 9; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Adjustable); Housing Style : Rectangular; Primary Housing Material : ABS; Small Visible Spot : Laser; Laser Classification : Class 2; Input/Output : Discrete; Max Sensing Distance (mm) : 250; Outputs : PNP; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -10; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 50; Output response time (ms) : 0.7; Sensing Beam Wavelength : 658; Repeatability (µs) : 130; Number of Pins : 4; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 50°C; Adjustments : Mechanical Screw

Type

QS18

Lens material

Acrylic

Sensing beam

Visible Red Laser

Connection

Cable

Typical response time

200 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
