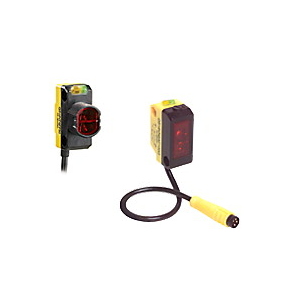

QS18VP6FF100Q BANNER ⍾ 71885

QS18 Series All Purpose Photoelectric Sensor; WORLD-BEAM QS18Series: Fixed-Field Range: 100 mm cutoff Output: Complementary Solid State PNP6 in Pigtail Pico-Style Pigtail QD Connector; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Fixed); Housing Style : Rectangular w/M18 Mount; Primary Housing Material : ABS; Small Visible Spot : LED; Input/Output : Discrete; Max Sensing Distance (mm) : 100; Outputs : PNP; Quick Disconnect Type : M8 (Pico); Min Op. Temp. (°C) : -20; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 70; Output response time (ms) : 0.85; Sensing Beam Wavelength : 630; Repeatability (µs) : 160; Number of Pins : 4; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 50°C; Barrel Diameter (mm) : 18; Feature: Quick Disconnect : Yes

Type

QS18

Lens material

Acrylic

Sensing beam

Visible Red LED

Connection

Pigtail QD

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
