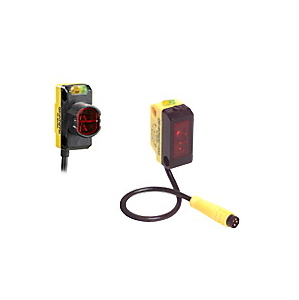

QS18VN6AF100 W/30 BANNER ⍾ 67402

This product has been marked as discontinued. Please ask for availability or replacement.

QS18 Series All Purpose Photoelectric Sensor; WORLD-BEAM QS18 Series: Adjustable Field Range: 100 mm; Input: 10-30 V dc Output: Complementary Solid State NPN9 m (30 ft) Cable; Cable Length (m) : 9; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Adjustable); Housing Style : Rectangular; Primary Housing Material : ABS; Input/Output : Discrete; Max Sensing Distance (mm) : 100; Outputs : NPN; Quick Disconnect Type : No QD; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 55; Output response time (ms) : 0.7; Sensing Beam Wavelength : 640; Repeatability (µs) : 175; Number of Pins : 4; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 50°C; Adjustments : Mechanical Screw

Type

QS18

Lens material

Acrylic

Sensing beam

Visible Red LED

Connection

Cable

Typical response time

200 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
