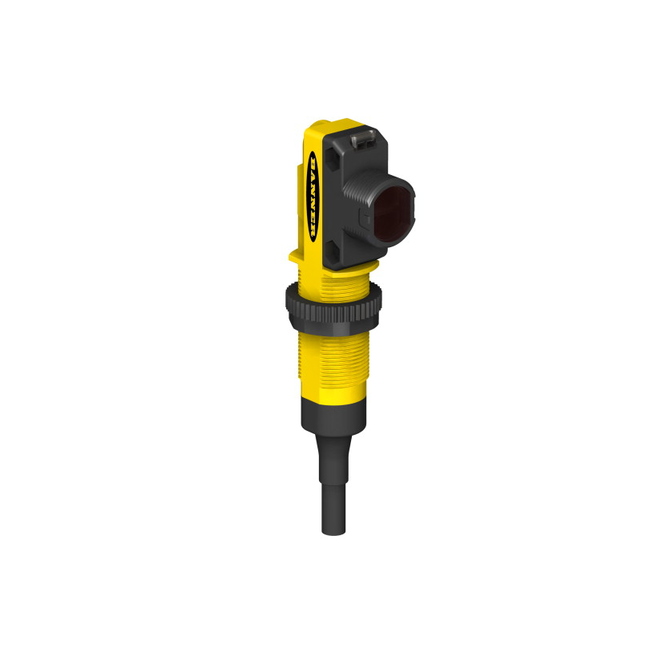

QS18RPWLVQ2 BANNER ⍾ 79584

QS18 Series All Purpose Photoelectric Sensor; WORLD-BEAM QS18 Univ Volt; Retro; Visible Red Range: 6.5 m; Input: 20 to 140V ac/dc Output: D.O. P-MOSFET (Sourcing)150mm Pigtail Micro Pigtail QD Connector; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Non-Polarized; Housing Style : Rectangular w/M18 Mount; Primary Housing Material : ABS; Input/Output : Discrete; Max Sensing Distance (mm) : 6500; Outputs : P-MOSFET (Sourcing); Quick Disconnect Type : 1/2 in. (Micro); Operation : Dark Operate; Min Op. Temp. (°C) : -25; Max Op. Temp. (°C) : 70; Output response time (ms) : 8.3; Sensing Beam Wavelength : 630; Repeatability (µs) : 1500; Number of Pins : 4; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 55°C; Adjustments : Potentiometer; Barrel Diameter (mm) : 18; Feature: Quick Disconnect : Yes

Type

QS18

Lens material

PMMA

Sensing beam

Visible Red LED

Connection

Pigtail QD

Typical response time

100ms dc, 300ms ac ms

Power supply type

AC/DC Universal

Power supply

20-140 V ac/dc

Indicator

LEDs

Degree of protection

IP67
