QS18RPWLPC1 BANNER ⍾ 81349

This product has been marked as discontinued. Please ask for availability or replacement.

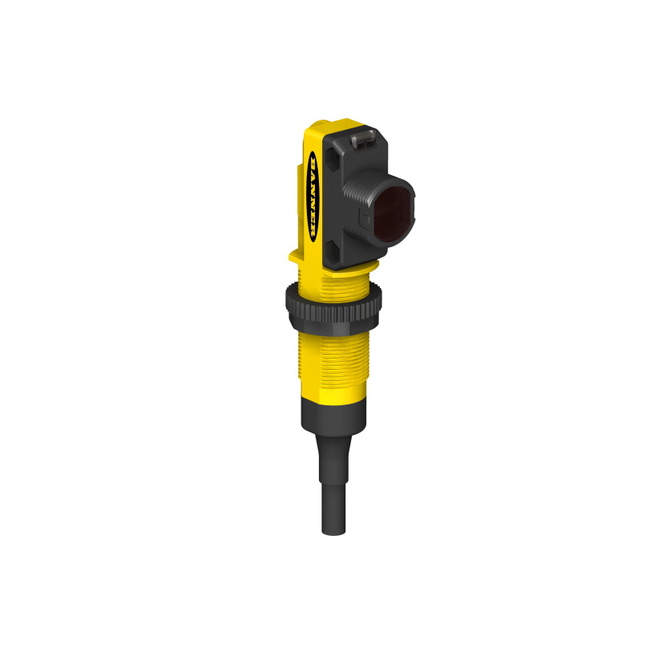

QS18 Series All Purpose Photoelectric Sensor; WORLD-BEAM QS18 Series: Polarized Retro Range: 3.5 m; Input: 20-140 V ac/dc Output: Dark Operate Solid State P-MOSFET2 m (6.5 ft) Cable; Cable Length (m) : 2; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Polarized; Housing Style : Rectangular w/M18 Mount; Primary Housing Material : ABS; Input/Output : Discrete; Max Sensing Distance (mm) : 3500; Outputs : P-MOSFET (Sourcing); Quick Disconnect Type : No QD; Operation : Dark Operate; Min Op. Temp. (°C) : -25; Max Op. Temp. (°C) : 70; Output response time (ms) : 8.3; Sensing Beam Wavelength : 630; Repeatability (µs) : 1500; Number of Pins : 3; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 55°C; Adjustments : Potentiometer; Barrel Diameter (mm) : 18

Type

QS18

Lens material

PMMA

Sensing beam

Visible Red LED

Connection

Cable

Typical response time

100ms dc, 300ms ac ms

Power supply type

AC/DC Universal

Power supply

20-140 V ac/dc

Indicator

LEDs

Degree of protection

IP67
