QS18EP6CV15QPMA BANNER ⍾ 80845
This product has been marked as discontinued. Please ask for availability or replacement.

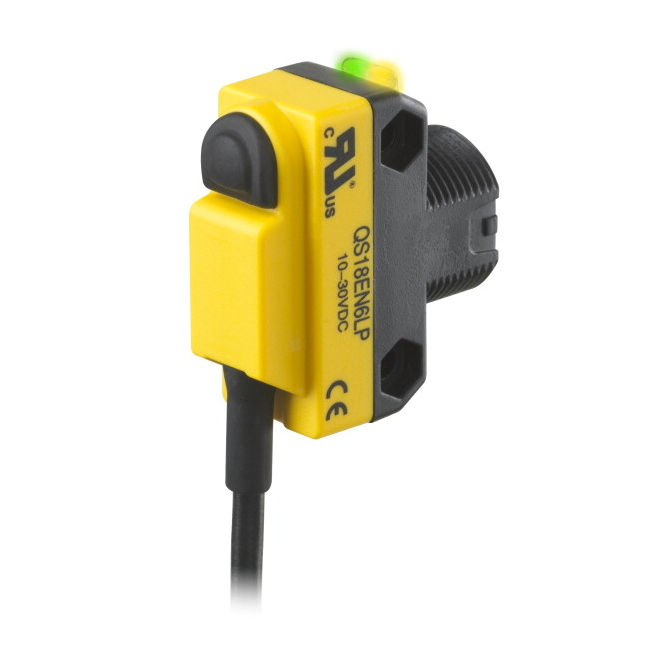

QS18 Series All Purpose Photoelectric Sensor; WORLD-BEAM QS18 Expert Series; Convergent Focal Point: 16 mm; Input: 10-30V dc Output: NPN150mm Pigtail Euro Quick-Disconnect Connector; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Convergent; Housing Style : Rectangular w/M18 Mount; Primary Housing Material : ABS; Input/Output : Discrete; Max Sensing Distance (mm) : 16; Outputs : PNP; Quick Disconnect Type : M12 (Euro); Operation : Light/Dark Operate; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 70; Output response time (ms) : 0.6; Special Feature: Remote Teach : Yes; Sensing Beam Wavelength : 630; Repeatability (µs) : 75; Number of Pins : 4; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 50°C; Adjustments : Teach Button; Barrel Diameter (mm) : 18; Feature: Timing (Hold/Delay) : Yes; Feature: Quick Disconnect : Yes
- Lens material
- PMMA
- Sensing beam
- Visible Red LED
- Connection
- Pigtail PUR QD
- Typical response time
- 100 ms
- Power supply type
- DC
- Power supply
- 10-30 V dc
- Indicator
- LEDs
- Degree of protection
- IP67
