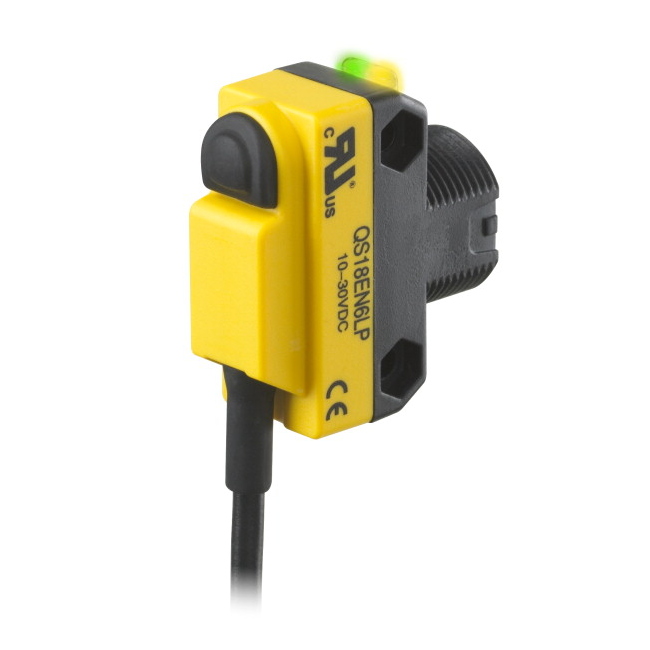

QS18EN6W BANNER ⍾ 69213

QS18 Series All Purpose Photoelectric Sensor; WORLD-BEAM QS18 Expert Series: Divergent Diffuse Range: 300 mm; Input: 10-30V dc Output: NPN2 m (6.5 ft) Cable; Cable Length (m) : 2; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Divergent; Housing Style : Rectangular; Primary Housing Material : ABS; Input/Output : Discrete; Max Sensing Distance (mm) : 300; Outputs : NPN; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -20; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 70; Output response time (ms) : 0.6; Special Feature: Remote Teach : Yes; Repeatability (µs) : 75; Number of Pins : 4; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 50°C; Adjustments : Teach Button; Feature: Timing (Hold/Delay) : Yes

Type

QS18

Lens material

PMMA

Sensing beam

Infrared LED

Connection

Cable

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
