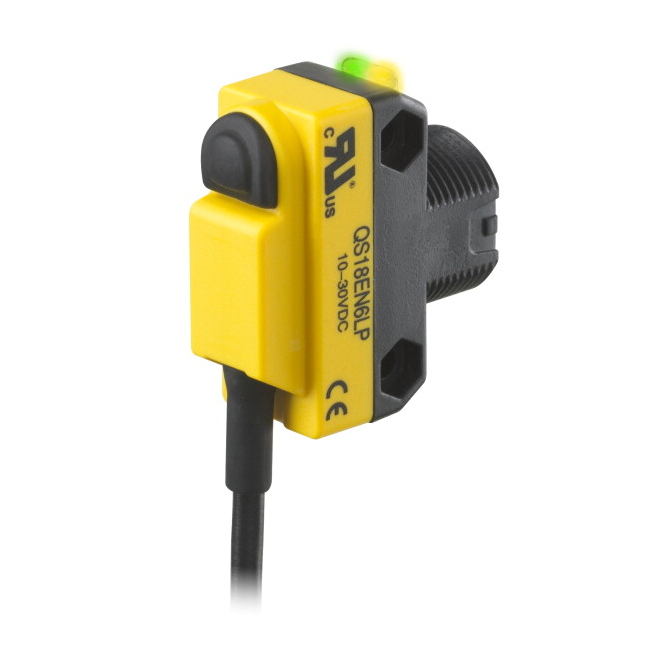

QS18EN6LPQ5 BANNER ⍾ 68753

QS18 Series All Purpose Photoelectric Sensor; WORLD-BEAM QS18 Expert Series: Polar Retro Range: 3.5 m; Input: 10 to 30 V dc Output: Complementary Solid State NPN6 in Pigtail Euro-Style Pigtail QD Connector; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Polarized; Housing Style : Rectangular w/M18 Mount; Primary Housing Material : ABS; Input/Output : Discrete; Max Sensing Distance (mm) : 3500; Outputs : NPN; Quick Disconnect Type : M12 (Euro); Operation : Light/Dark Operate; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 70; Output response time (ms) : 0.6; Special Feature: Remote Teach : Yes; Sensing Beam Wavelength : 630; Repeatability (µs) : 75; Number of Pins : 4; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 50°C; Adjustments : Teach Button; Barrel Diameter (mm) : 18; Feature: Timing (Hold/Delay) : Yes; Feature: Quick Disconnect : Yes

Type

QS18

Lens material

PMMA

Sensing beam

Visible Red LED

Connection

Pigtail QD

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
