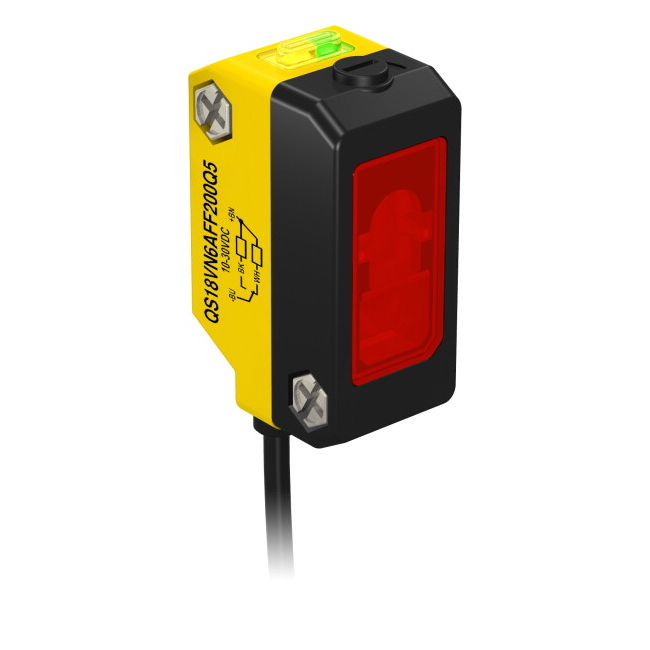

QS18AB6AFF40Q5 BANNER ⍾ 12191

QS18 Series All Purpose Photoelectric Sensor; WORLD-BEAM: Adjustable Field Foreground Suppression Cutoff Adjustment Range: 15 to 40mm; Input:10-30V dc Outputs: Bipolar NPN and PNP Light Operate 6 in. Pigtail EURO-Style Pigtail QD Connector; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Foreground Suppression (Adjustable); Housing Style : Rectangular; Primary Housing Material : ABS; Small Visible Spot : LED; Input/Output : Discrete; Max Sensing Distance (mm) : 40; Quick Disconnect Type : M12 (Euro); Min Op. Temp. (°C) : -20; Operation : Light Operate; Max Op. Temp. (°C) : 55; Output response time (ms) : 2.5; Sensing Beam Wavelength : 630; Repeatability (µs) : 250; Number of Pins : 4; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 50°C; Adjustments : Mechanical Screw; Feature: Quick Disconnect : Yes

Type

QS18

Lens material

Acrylic

Sensing beam

Visible Red LED

Connection

Pigtail QD

Typical response time

200 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
