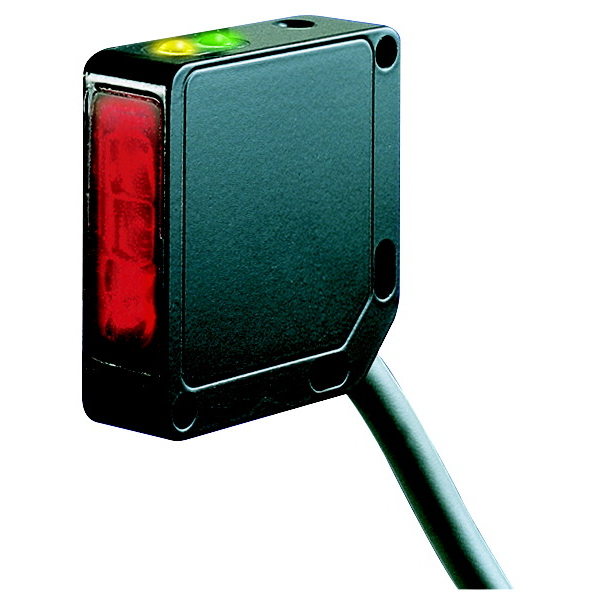

QMT42VP6DX BANNER ⍾ 56896

QM42 & QMT42 Series Easy Mount Rectangular Housing Sensor; QMT42 Series: Long Range Diffuse Range: 10 mm to 6m; Input: 10-30V dc Output: SPDT (Complementary) PNP2 m (6.5 ft) cable; Cable Length (m) : 2; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Diffuse; Housing Style : Rectangular; Primary Housing Material : Zinc Alloy Die-Cast; Input/Output : Discrete; Max Sensing Distance (mm) : 6000; Outputs : PNP; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -20; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 55; Output response time (ms) : 1; Sensing Beam Wavelength : 880; Repeatability (µs) : 250; Number of Pins : 4; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 90% @ 50°C; Adjustments : Potentiometer

Type

QM42 & QMT42

Lens material

Acrylic

Sensing beam

Infrared LED

Connection

Cable

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
