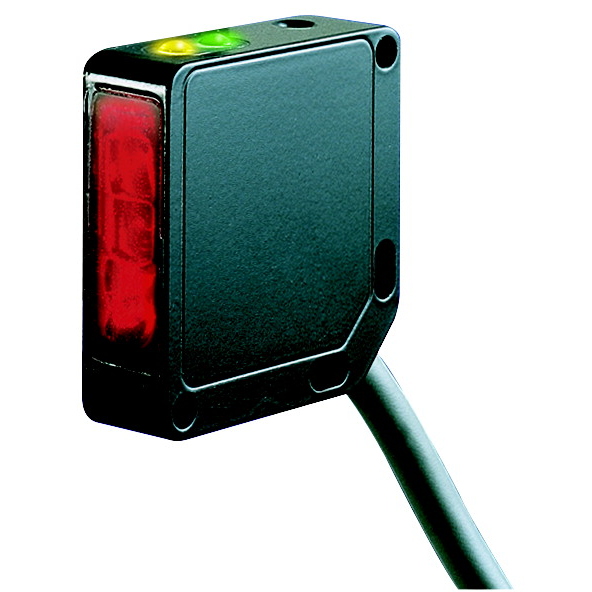

QMT42VN6FF500Q BANNER ⍾ 49228

QM42 & QMT42 Series Easy Mount Rectangular Housing Sensor; QMT42 Series: Fixed Field Range: 500 mm; Input: 10-30 V dc Output: SPDT (Complementary) NPNEuro M12 4-pin Integral QD; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Fixed); Housing Style : Rectangular; Primary Housing Material : Zinc Alloy Die-Cast; Input/Output : Discrete; Max Sensing Distance (mm) : 500; Outputs : NPN; Quick Disconnect Type : M12 (Euro); Operation : Light/Dark Operate; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 55; Output response time (ms) : 1; Sensing Beam Wavelength : 880; Repeatability (µs) : 250; Number of Pins : 4; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 90% @ 50°C; Feature: Quick Disconnect : Yes

Type

QM42 & QMT42

Lens material

Acrylic

Sensing beam

Infrared LED

Connection

Integral QD

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
