QM42VP6RQ BANNER ⍾ 44335

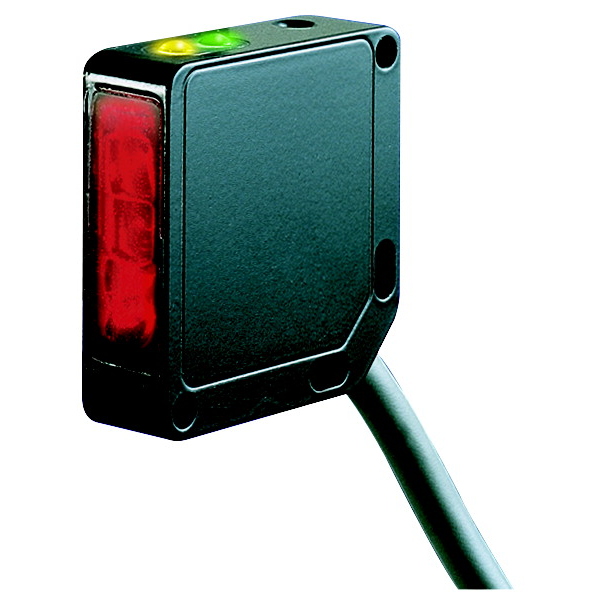

QM42 & QMT42 Series Easy Mount Rectangular Housing Sensor; QM42 Series: Receiver Range: 10 m; Input: 10-30 V dc Output: SPDT (Complementary) PNPEuro M12 4-pin Integral QD; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Receiver; Housing Style : Rectangular; Primary Housing Material : Zinc Alloy Die-Cast; Input/Output : Discrete; Max Sensing Distance (mm) : 10000; Outputs : PNP; Quick Disconnect Type : M12 (Euro); Min Op. Temp. (°C) : -20; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 70; Output response time (ms) : 1 ON/0.5 OFF; Sensing Beam Wavelength : 880; Repeatability (µs) : 120; Number of Pins : 4; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 90% @ 50°C; Adjustments : Potentiometer; Opposed Mode Emitter/Receiver : Receiver; Feature: Quick Disconnect : Yes

Type

QM42 & QMT42

Lens material

Acrylic

Sensing beam

Infrared LED

Connection

Integral QD

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
