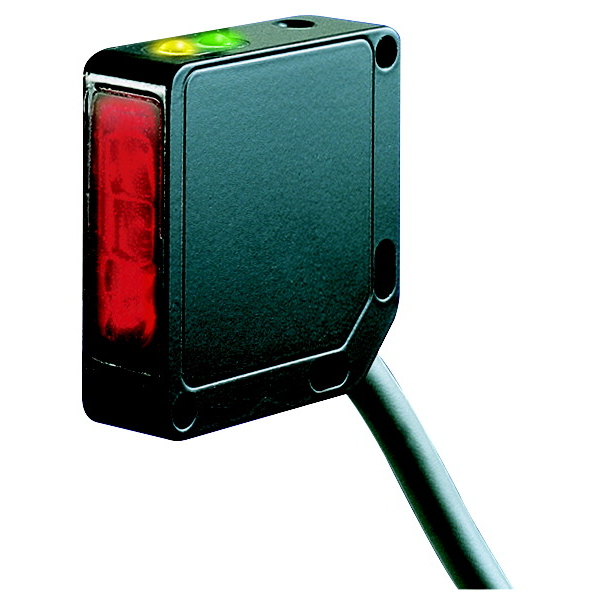

QM42VN6AFV150 W/30 BANNER ⍾ 48941

QM42 & QMT42 Series Easy Mount Rectangular Housing Sensor; QM42 Series: Adjustable Field Range: 5 to 150 mm; Input: 10-30 V dc Output: SPDT (Complementary) NPN9 m (30 ft) Cable; Cable Length (m) : 9; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Adjustable); Housing Style : Rectangular; Primary Housing Material : Zinc Alloy Die-Cast; Input/Output : Discrete; Max Sensing Distance (mm) : 150; Outputs : NPN; Quick Disconnect Type : No QD; Operation : Light/Dark Operate; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 55; Output response time (ms) : 1; Sensing Beam Wavelength : 680; Repeatability (µs) : 250; Number of Pins : 4; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 90% @ 50°C; Adjustments : Potentiometer

Lens material: Acrylic
Sensing beam: Visible Red LED
Connection: Cable
Typical response time: 100 ms
Power supply type: DC
Power supply: 10-30 V dc
Indicator: LEDs
Degree of protection: IP67
