QM426E BANNER ⍾ 44331

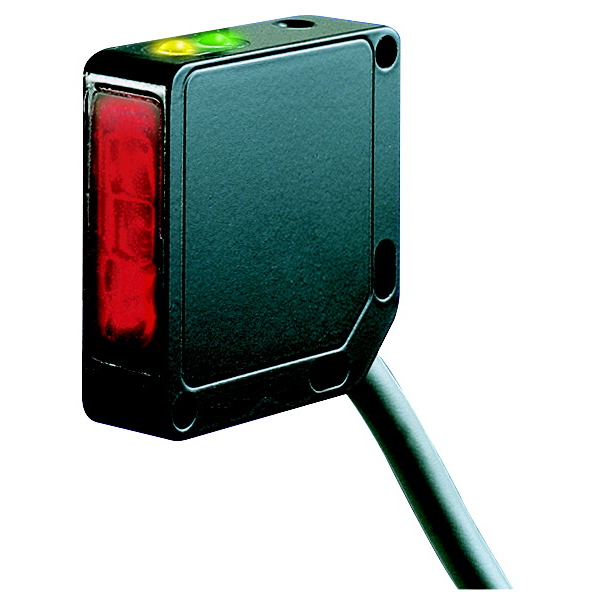

QM42 & QMT42 Series Easy Mount Rectangular Housing Sensor; QM42 Series: Emitter Range: 10 m; Input: 10-30V dc Output: Not applicable - No outputs 2 m (6.5 ft) cable; Cable Length (m) : 2; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter; Housing Style : Rectangular; Primary Housing Material : Zinc Alloy Die-Cast; Max Sensing Distance (mm) : 10000; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 70; Sensing Beam Wavelength : 880; Repeatability (µs) : 120; Number of Pins : 2; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 90% @ 50°C; Opposed Mode Emitter/Receiver : Emitter

Type

QM42 & QMT42

Lens material

Acrylic

Sensing beam

Infrared LED

Connection

Cable

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
