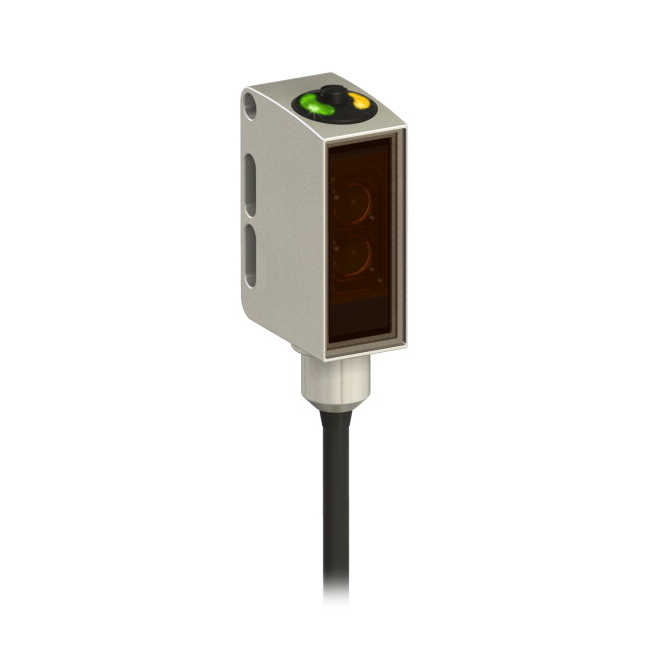

QM26VPLP-5M BANNER ⍾ 28718

QM26 Series Washdown Sensor; QM26 Washdown Series: Standard Polarized Retro Range: 3 m; Input 10 - 30 Vdc Output: Complementery Solid State PNP5 m (16.25 ft) Cable; Cable Length (m) : 5; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Polarized; Housing Style : Rectangular; Primary Housing Material : Stainless Steel; Input/Output : Discrete; Max Sensing Distance (mm) : 3000; Outputs : PNP; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -30; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 70; Output response time (ms) : 0.5; Sensing Beam Wavelength : 620; Repeatability (µs) : 150; Number of Pins : 4; Max Op. Relative Humidity [%] : 95% @ 55°C; Feature: Washdown Rated : Yes; Feature: Ecolab Certified : Yes; Feature: Chemical Resistant : Yes

Type

QM26

Lens material

PMMA

Sensing beam

Visible Red LED

Connection

Cable

Typical response time

300 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP69
