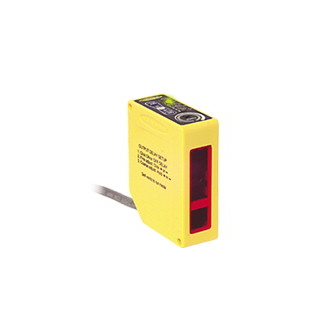

Q60VR3AF2000 BANNER ⍾ 63004

Q60 Series 2 m Range Adjustable-Field Sensor; Q60 Series: Adjustable-Field Infrared Univrs Volt Range: 200-2000 mm; Input: 12-250V dc or 24-250Vac Output: Electromechanical Relay (SPDT)2m (6.5ft) Cable; Cable Length (m) : 2; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Adjustable); Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : E/M Relay; Max Sensing Distance (mm) : 2000; Outputs : SPDT e/m Relay; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -20; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 55; Output response time (ms) : 15; Repeatability (µs) : 500; Number of Pins : 4; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 90% @ 50°C; Adjustments : Screw Adjustment; Feature: Timing (Hold/Delay) : Yes

Type

Q60

Lens material

Acrylic

Sensing beam

Infrared LED

Connection

Cable

Typical response time

150 ms

Power supply type

AC/DC Universal

Power supply

12-250 V dc or 24-250 V ac

Indicator

LEDs

Degree of protection

IP67
