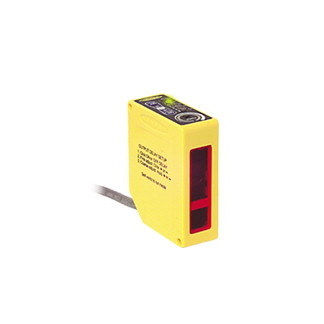

Q60BB6AFV1000Q BANNER ⍾ 70093

Q60 Series 2 m Range Adjustable-Field Sensor; Q60 Series: Adjustable-Field Visable Red Range: 200-1000 mm; Input: 10-30V dc Output: Bipolar: 1 NPN; 1 PNPEuro Style Quick-Disconnect Connector; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Adjustable); Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 1000; Outputs : Bipolar (NPN & PNP); Quick Disconnect Type : M12 (Euro); Min Op. Temp. (°C) : -20; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 55; Output response time (ms) : 2; Special Feature: Remote Teach : Yes; Sensing Beam Wavelength : 665; Repeatability (µs) : 500; Number of Pins : 5; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 90% @ 50°C; Adjustments : Screw Adjustment; Feature: Timing (Hold/Delay) : Yes; Feature: Quick Disconnect : Yes

Type

Q60

Lens material

Acrylic

Sensing beam

Visible Red LED

Connection

Integral QD

Typical response time

150 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
