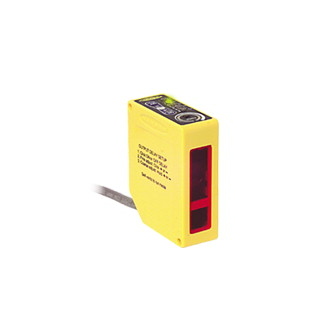

Q60BB6AF2000Q BANNER ⍾ 63001

Q60 Series 2 m Range Adjustable-Field Sensor; Q60 Series: Adjustable-Field Infrared Range: 200-2000 mm; Input: 10-30V dc Output: Bipolar: 1 NPN; 1 PNPEuro-Style Quick-Disconnect Connector; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Adjustable); Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 2000; Outputs : Bipolar (NPN & PNP); Quick Disconnect Type : M12 (Euro); Min Op. Temp. (°C) : -20; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 55; Output response time (ms) : 2; Special Feature: Remote Teach : Yes; Repeatability (µs) : 500; Number of Pins : 5; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 90% @ 50°C; Adjustments : Screw Adjustment; Feature: Timing (Hold/Delay) : Yes; Feature: Quick Disconnect : Yes

Lens material: Acrylic
Sensing beam: Infrared LED
Connection: Integral QD
Typical response time: 150 ms
Power supply type: DC
Power supply: 10-30 V dc
Indicator: LEDs
Degree of protection: IP67
