Q50AUQ BANNER ⍾ 67607

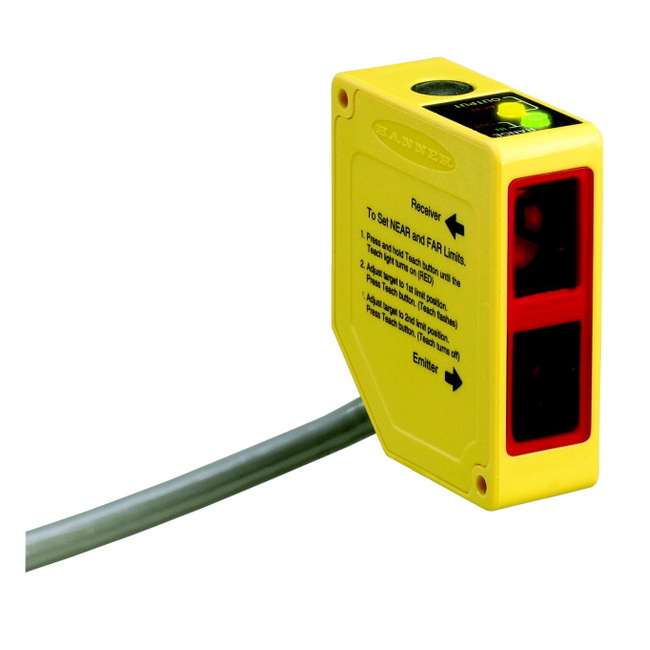

Q50 Series LED Measurement Sensor; Q50 Series: LED-based Triangulation Measurement Infrared LED Range: 50-200 mm; Input: 15 to 30 V dc Output: 0 to 10V; Response: 4 / 64 ms Selectable Euro Quick-Disconnect; Max Measurement Range : >100 mm - <=500 mm; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Triangulation; Housing Style : Rectangular; Device Type : Sensor; Primary Housing Material : ABS/Polycarbonate; Input/Output : Analog; Analog Output Configuration : 0-10 V dc; Quick Disconnect Type : M12 (Euro); Analog Resolution/Discrete Repeatability : 0.5; Max Sensing Distance (mm) : 200; Minimum Sensing Distance (mm) : 50; Power Supply : 15-30 V dc; Sensing Beam Wavelength (nm) : 880; Adjustments : Teach Button; Temperature Effect (mm/°C) : 0.08 mm/°C from 0 to 50°C, 0.11 mm/°C from -10 to 55°C; Number of Pins : 5; Vibration : MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).; Mechanical Shock : IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave; Analog Voltage Output Rating : 15mA Max; Output Protection : Protected against short circuit conditions; NEMA Rating : NEMA 6; Max Operating Temperature (°C) : 55; Min Operating Temperature (°C) : -10; Max Op. Relative Humidity Non-Condensing (%) : 90 at 50°C; Window Material : Acrylic; Warm-up Time (minutes) : 15; Minimum Response Time (ms) : 4; Spot Size (@ Reference Distance) : 20 mm; Analog Linearity (mm) : +/- 1.5; Minimum Window Size (mm) : 5; Color Sensitivity (Typical) : 90% white to 18% gray: < 1.25 mm; 90% white to 6% black: < 5.5 mm (see chart for details); Remote Teach and Laser Control Input Impedence : 15 kΩ; Max Ambient Light (Lux) : 10000; Power/Current Consumption (exclusive of load) : 70 mA; Supply Protection Circuitry : Protected against reverse polarity and transient overvoltages; Feature: Remote Teach : Yes; Feature: Quick Disconnect : Yes

Type

Laser Distance Measurement

Connection

Integral QD

Sensing beam

Infrared LED

Typical response time

2000 ms

Power supply type

DC

Indicator

LED(s)

Degree of protection

IP67
