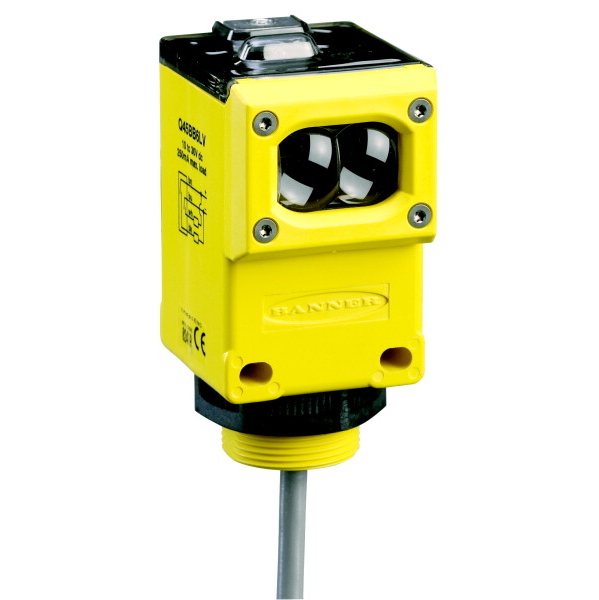

Q45VR2LV BANNER ⍾ 35441

Q45 Series Rugged Rectangle Sensor; Q45 Series: Retro Range: 0.08 - 9 m; Input: 90-250V ac Output: SPDT Electromechanical Relay 2 m (6.5 ft) cable; Cable Length (m) : 2; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Non-Polarized; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : E/M Relay; Max Sensing Distance (mm) : 9000; Outputs : SPDT e/m Relay; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -40; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 70; Output response time (ms) : 15; Sensing Beam Wavelength : 680; Repeatability (µs) : 500; Number of Pins : 5; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Adjustments : Potentiometer; Barrel Diameter (mm) : 30; Feature: Timing (Hold/Delay) : Yes

Type

Q45

Lens material

Acrylic

Sensing beam

Visible Red LED

Connection

Cable

Typical response time

100 ms

Power supply type

AC

Power supply

90-250 V ac

Indicator

LEDs

Degree of protection

IP67
