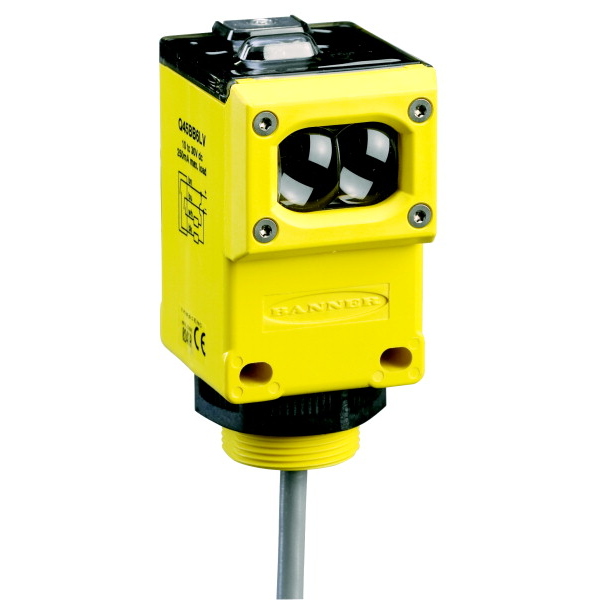

Q45VR2CV4Q BANNER ⍾ 37008

Q45 Series Rugged Rectangle Sensor; Q45 Series: Convergent Focal Point: 100 mm; Input: 90-250 V ac Output: SPDT Electromechanical Relay Mini 5-pin Integral QD; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Convergent; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : E/M Relay; Max Sensing Distance (mm) : 100; Outputs : SPDT e/m Relay; Quick Disconnect Type : 7/8 in. (Mini); Operation : Light/Dark Operate; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 15; Sensing Beam Wavelength : 680; Repeatability (µs) : 500; Number of Pins : 5; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Adjustments : Potentiometer; Barrel Diameter (mm) : 30; Feature: Timing (Hold/Delay) : Yes; Feature: Quick Disconnect : Yes

Type

Q45

Lens material

Acrylic

Sensing beam

Visible Red LED

Connection

Integral QD

Typical response time

100 ms

Power supply type

AC

Power supply

90-250 V ac

Indicator

LEDs

Degree of protection

IP67
